What Is a Lantern Ring? A Complete Guide for Pump Maintenance & Seal Reliability

Lantern rings play a crucial role in improving pump reliability, especially in systems handling abrasive or corrosive fluids. Yet many technicians and operators often overlook their function until a seal starts leaking or packing begins to wear prematurely.

In this guide, we explain what a lantern ring is, how it works, and why it is essential—especially for packing-based sealing systems in centrifugal pumps. If you use pumps in industrial operations, understanding this component can significantly improve equipment lifespan and reduce downtime. If you need to know more details click here.

What Is a Lantern Ring?

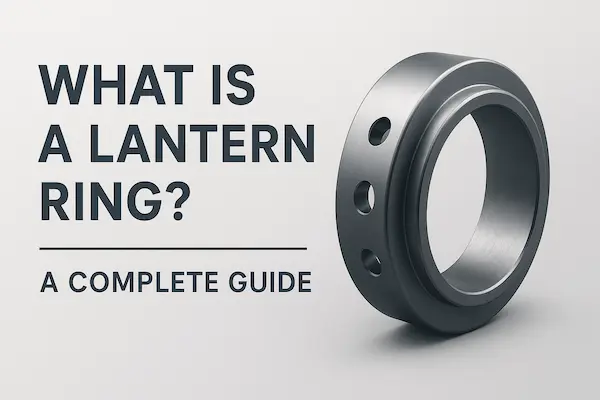

A lantern ring in a pump is a hollow, perforated metal or polymer ring placed inside the stuffing box of a pump.
Its primary function is to:

Provide lubrication to packing

Deliver flushing fluid to protect the shaft

Prevent contaminants from entering the stuffing box

Improve seal performance and longevity

Lantern rings are commonly used in pumps that rely on packing instead of mechanical seals, especially when the pumped fluid contains solids or is not suitable for direct contact with the shaft surface.

Where Is a Lantern Ring Installed?

A lantern ring sits between packing rings inside the stuffing box.
Typical arrangement:

• Packing rings
• Lantern ring
• Packing rings
• Gland follower

This central placement allows flushing or sealing fluid to enter through external ports and distribute evenly around the shaft.

How Does a Lantern Ring Work?

The lantern ring in a pump works on a simple principle:

A lubricating or flushing fluid is injected into the stuffing box.

The lantern ring distributes the fluid evenly through its radial holes.

The fluid forms a protective barrier between the shaft and packing.

This barrier prevents dry running, heat buildup, and external contamination.

Key Benefits of Lantern Ring Functionality

Reduced friction between packing and shaft

Lower heat generation, preventing packing burn-out

Contaminant isolation, increasing packing lifetime

Improved sealing performance in tough applications

Reduced shaft wear, avoiding costly repairs

Types of Lantern Rings

Lantern rings come in several material options depending on the application:

1. Metallic Lantern Rings

• Brass
• Bronze
• Stainless Steel

Used for high-temperature, abrasive, or corrosive applications.

2. Non-Metallic Lantern Rings

• PTFE
• Nylon
• Polypropylene
• Glass-filled polymers

Lightweight, corrosion-resistant, and used in chemical-handling pumps.

Lantern Ring in Centrifugal Pump Applications

The lantern ring in centrifugal pump systems is particularly important because centrifugal pumps often operate under conditions where packing fails quickly without proper lubrication or flushing.

Why Lantern Rings Are Crucial in Centrifugal Pumps

These pumps handle a wide variety of fluids, including slurries and chemical mixtures.

Lantern rings ensure consistent cooling and prevent solid ingress.

They maintain a stable sealing environment even under fluctuating pressures.

They allow injection of clean flush water to protect internal components.

Common Problems Caused by Missing or Damaged Lantern Rings

Ignoring lantern ring maintenance can lead to:

• Excessive packing wear
• Shaft scoring or grooving
• Packing blowout
• Leaks in the stuffing box
• Increased energy consumption
• Frequent pump shutdowns

These issues multiply operational costs and reduce pump reliability.

Signs That Your Lantern Ring Needs Replacement

Watch for these indicators:

• Packing burns or hardens quickly
• Shaft temperature rises
• Flushing fluid flow reduces or stops
• Leak rate increases
• Gland adjustments no longer help
• Lantern ring does not align with the flush port

Best Practices for Lantern Ring Installation

To maximize performance:

1. Proper Positioning

Ensure the lantern ring aligns with the injection port. Misalignment stops lubrication flow.

2. Correct Packing Arrangement

Always follow the recommended packing–lantern–packing configuration.

3. Choose the Right Material

Use corrosion-resistant or abrasion-resistant material depending on the fluid.

4. Maintain Clean Flush Lines

Clogged flush ports reduce cooling efficiency and damage packing.

5. Regular Inspection

Check lantern rings during pump overhauls or packing replacement.

Lantern Rings vs Mechanical Seals: Which Should You Use?

Lantern rings are ideal for:

Slurry pumps

Dirty fluids

Non-hazardous environments

Low to medium pressure applications

Mechanical seals are preferred when:

Leakage cannot be tolerated

The fluid is hazardous

Efficiency is a top priority

QMSEALS provides industry-grade sealing solutions—including mechanical seals, packing, and lantern rings—to match your pump requirements.

Why Choose QMSEALS Lantern Rings?

QMSEALS manufactures high-precision lantern rings using durable materials that offer:

• Excellent chemical resistance
• High mechanical strength
• Long operating life
• Smooth, consistent flush flow
• Compatibility with most industrial pump brands

Our precision-machined lantern rings ensure your pump packing system performs reliably in harsh environments, reducing downtime and maintenance costs.

Conclusion

A lantern ring may seem like a small component, but it plays a critical role in ensuring pump reliability, reducing wear, and maintaining efficient operation. Understanding the importance of the lantern ring in pump systems—especially in centrifugal pumps—helps maintenance teams achieve longer equipment life and lower operating costs.

If you need high-quality lantern rings or sealing components, QMSEALS offers engineered solutions designed for demanding industrial applications.

Frequently Asked Questions

1. What is the function of a lantern ring in a pump?

A lantern ring helps distribute lubrication or flushing fluid inside the stuffing box. This reduces friction, prevents contamination, cools the packing, and protects the pump shaft from wear.

2. Where is the lantern ring located in a centrifugal pump?

In a centrifugal pump, the lantern ring is positioned between the packing rings inside the stuffing box—aligned with the flush port—so it can evenly supply clean lubricating fluid around the shaft.

3. When should a lantern ring be replaced?

A lantern ring should be replaced if it becomes clogged, misaligned, cracked, worn, or if packing wears out unusually fast. Reduced flush flow or increased leakage are also signs that the lantern ring needs inspection or replacement.
